By accessing "Data and measurement" of any Control Guide, user has different data reporting of its content.

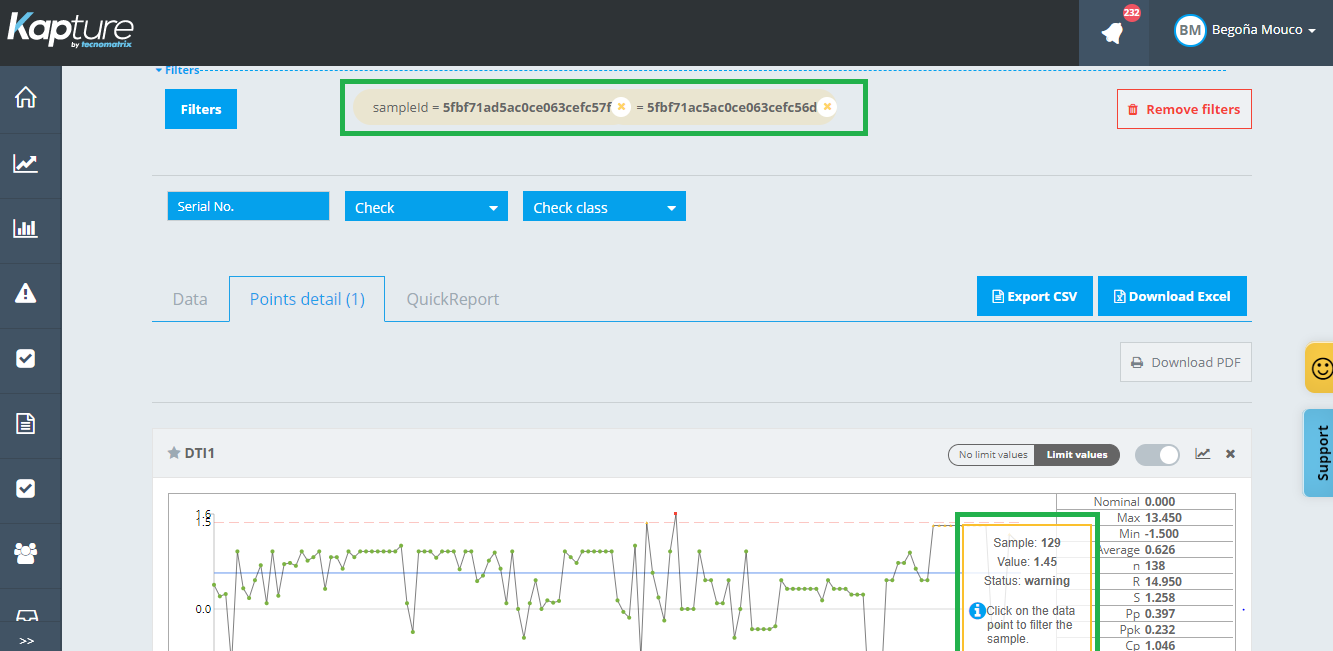

Point detail is a graphic representation of the evolution of one or more checks data along time.
As in all KaptureIO reports, user is able to apply different attribute and date filters to select exactly the data that is wanted to be shown and easily print the result. In addition, on numeric checks, KaptureIO provides the user with basic statistical values of the selected ones. All Point Details panels can be exported to any KaptureIO dashboard. Also, this point detail area can be export on a download PDF.

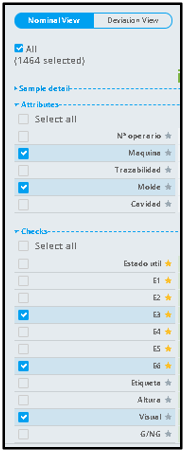

1. Select attributes, checks or cosmetic checks
2. Analyze selected attributes or checks with the different dashboards provided by Kapture.io.

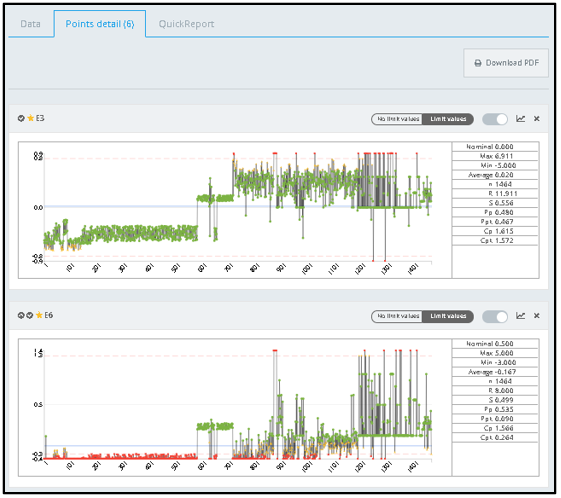

Trend Chart for numerical elements with SPC data.

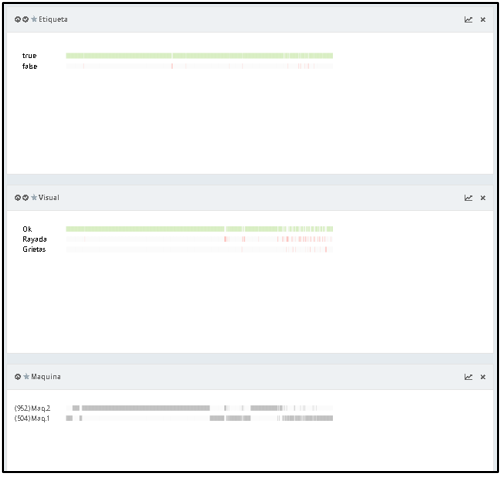

Boolean dashboards for checks or attributes.

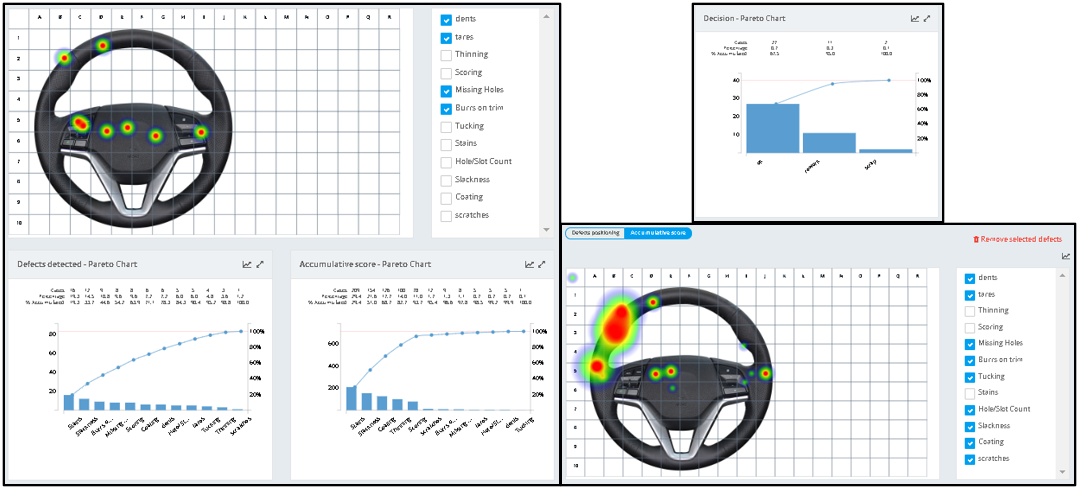

Cosmetic checks. Heat Map and Paretos (defects and final status).

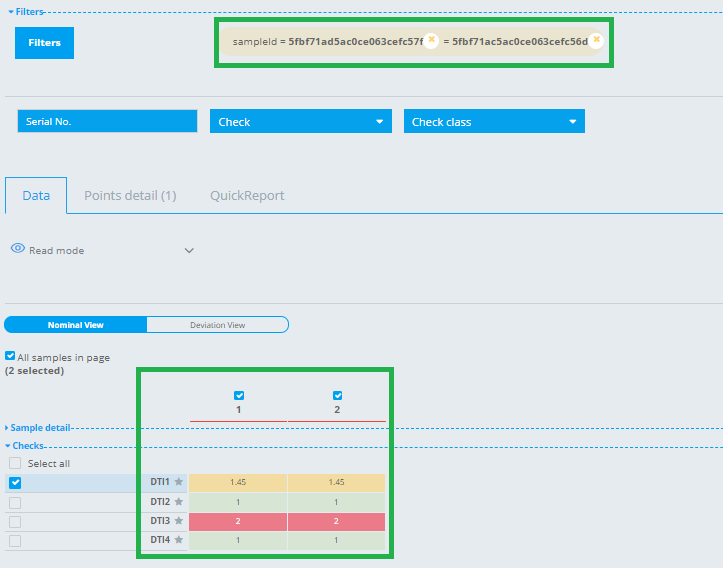

3. Filter using Point Detail graphs
All points represented on every Point Detail graphic are interactive: by sliding the mouse over the point, user can see a sum up of the information related to the point. If a deeper analysis of any point is needed, it can be done by filtering this/these points clicking on them and going back to "Data" tab.
