Kapture.io reads the GOM standard file, on csv file format.


The next elements are mandatory on the file structure and they need to appear exactly on the next order on consecutive columns.


  1. Name of the element
  2. Datum
  3. Property
  4. Criterion
  5. Type
  6. Theoric Value
  7. Real Value
  8. Lower Tolerance
  9. Upper Tolerance
  10. Deviation

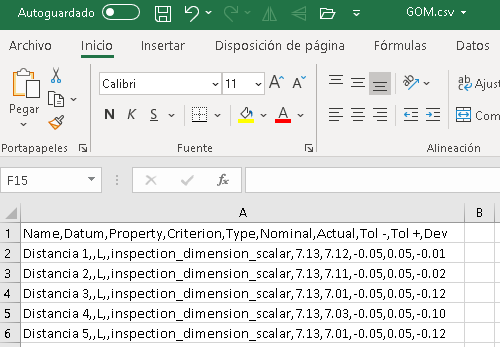

See a reduced example on the attached picture:
