Kapture.io reads the Polyworks A standard file, on csv file format.


The next elements are mandatory on the file structure and they need to appear exactly on the next order on consecutive columns.


  1. Name of the element
  2. Type of control
  3. Theoric Value
  4. Real Value
  5. Deviation
  6. Upper Tolerance
  7. Lower Tolerance

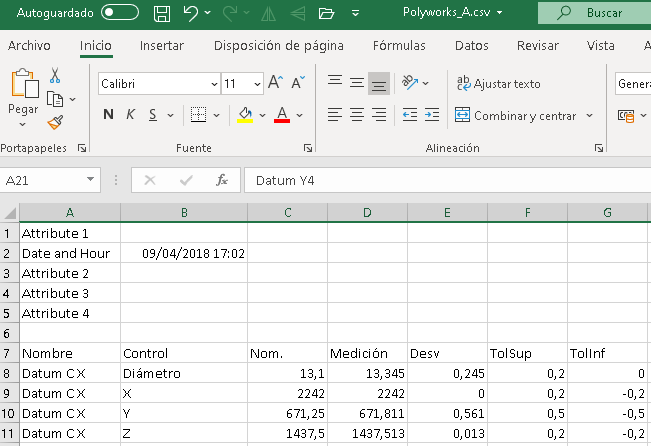

See a reduced example on the attached picture:


Note: Informative Parameters / Attributes are optional.
