Kapture.io reads the PC DMIS General standard file, on txt file format.
The next elements are mandatory on the file structure and they need to appear exactly on the next order on consecutive columns separated by ",".
- Name of the element
- Theoric Value
- Lower Tolerance
- Upper Tolerance
- Real Value
- Deviation
- Out of Tolerance

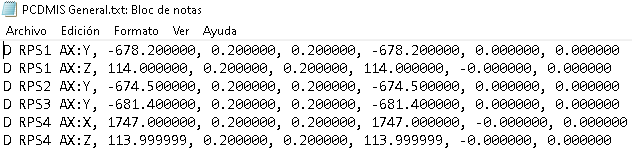

See a reduced example on the attached picture:
