Kapture.io reads the Metrolog standard file, on txt file format.
The next elements are mandatory on the file structure and they need to appear exactly on the next order on consecutive columns separated by";".
- Type of elements
- Name of the element
- Value
- Actual
- Theoric
- Deviation
- Lower Tolerance
- Upper Tolerance
- Out of Tolerance
- Comments

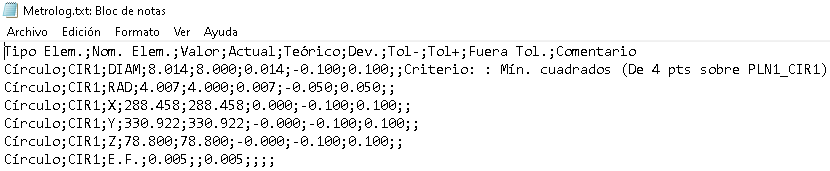

See a reduced example on the attached picture:
