KaptureIO Dashboards are quick and accessible data reporting created by a user following the specific needs for each case.

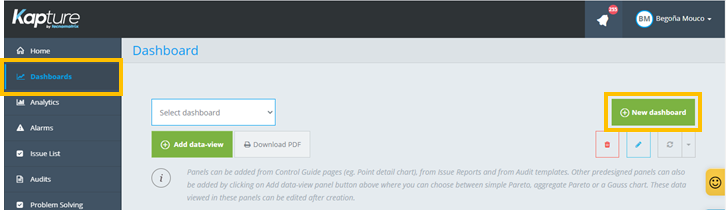

To create a new Dashboard, you only need to access Dashboard>New Dashboard:

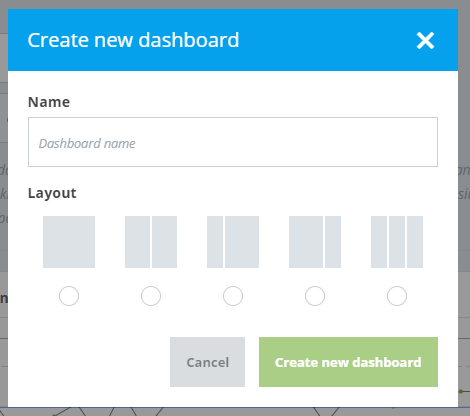

Next step is to name the new dashboard and choose the specific widget layout for this specific dashboard between the different available options :

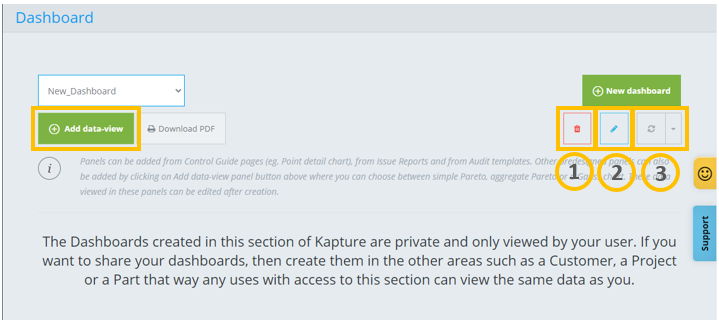

Once the dashboard is created, the user can add any available widget, data-view panel or import any other widget available in other different sections (see here), regarding the information needed and the best output to analyze it. User can also modify panels disposition (2) or delete (1) the selected dashboard.
In addition, there are several different refresh options (3): none, 15 seconds, 30 seconds, 1 minute or 5 minutes. This can be established and modified for each dashboard following the frequency needed in each case.

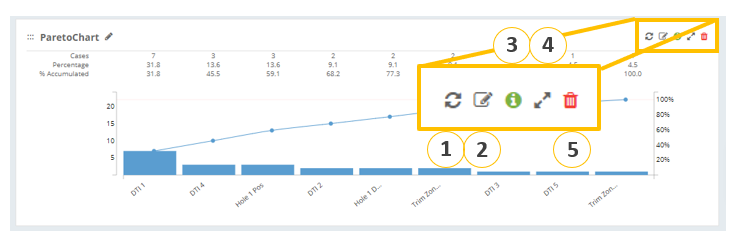

Once the data-panel has been added, user can view the source of the information showed and the checks displayed (3), update the data (1), expand the widget (4) or delete it (5).
Furthermore, its content can be edited both at level of selected checks and in terms of filtering (date and attributes) (2).
