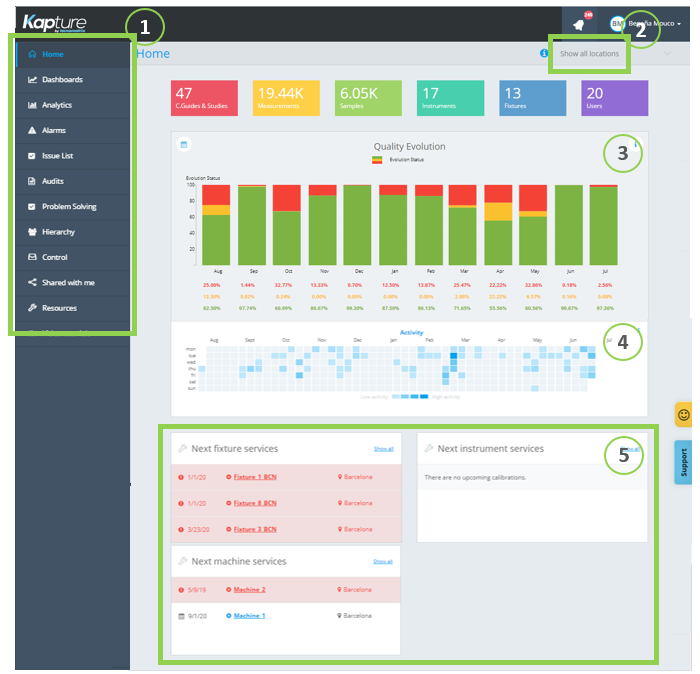

Accessing KaptureIO, user see the home page, where different menus, graphs, statistics and direct accesses will be found.




  1. On the left side of the page, user can easily find the different features available on KaptureIO. You just need to click on the selected one to access.
  2. On the right top of the screen, you can find a list with all the different locations user can access to (on organizations composed of different production plants). All data and charts will automatically change to show the selected one specific information.
  3. Quality evolution widget shows, in a very summarized way, the quality status evolution during the last year, representing OK, warning and KO controls.
  4. In the activity widget the user can obtain information, in a very simple way, about the number of Controls executed every day and compare it within any day of the last 12 months.
  5. In the bottom of the page, user can see quickly a summary of the next calibration alerts of the different fixtures, instruments and machines registered on Kapture.
