CONTROL GUIDES: DATA AND MEASUREMENT.

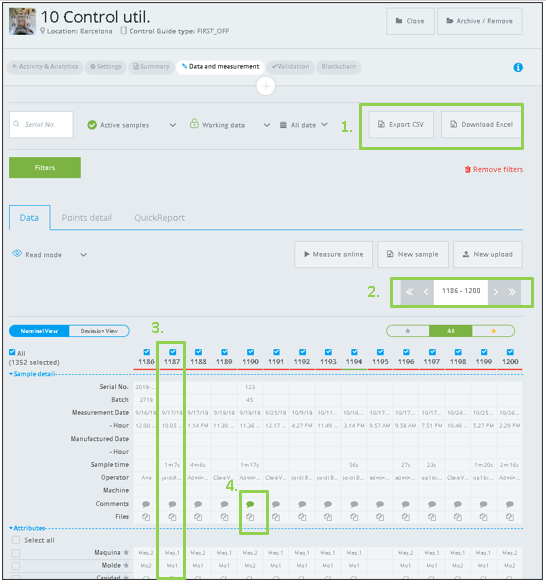

1. Export data to CSV or Excel: We can use filters of information to focus on the data required at the moment.
2. To move between different measurements.
3. Information about a measurement done: all the details are available here. Traceability, attributes, checks, etc.
4. Attached Pictures and Comments: the additional information provided by operators is available here.

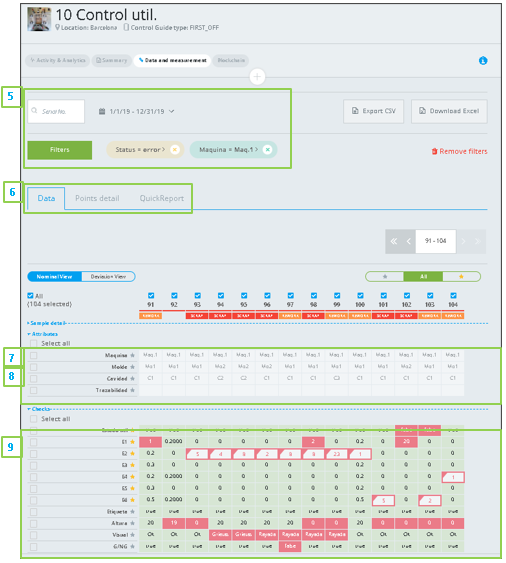

5. Filters: it will be possible to use different filters that facilitate the analysis of the data. Date status, informative parameters, etc.
6. Types of display: data, point detail and Quick Report.
7. Part traceability detail: relevant information regarding the detail of the measurement made. Measurement time, who carried out the measurement, how much time was taken to carry out the measurement, etc.
8. Attributes: informative parameters of interest configured. Machine, cavity, mold, etc.
9. Sample measurement details: detail of the executed controls. Favorite checks, out of specification points, justified checks, etc.

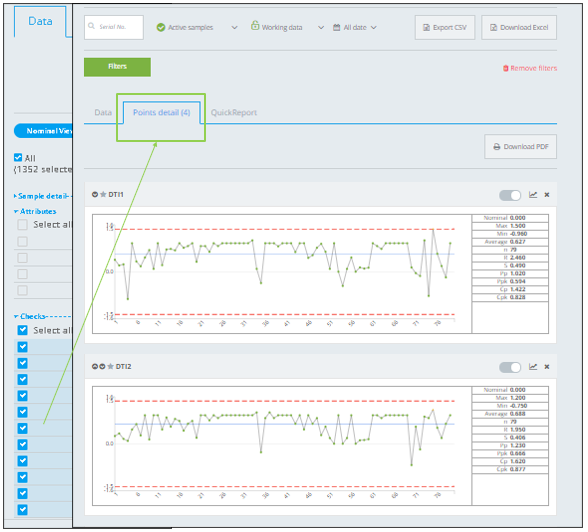

CONTROL GUIDES: POINT DETAIL.
To analyze graphically our data after selecting our attributes or checks on "Data" area. Note: we can also use filters on this area.

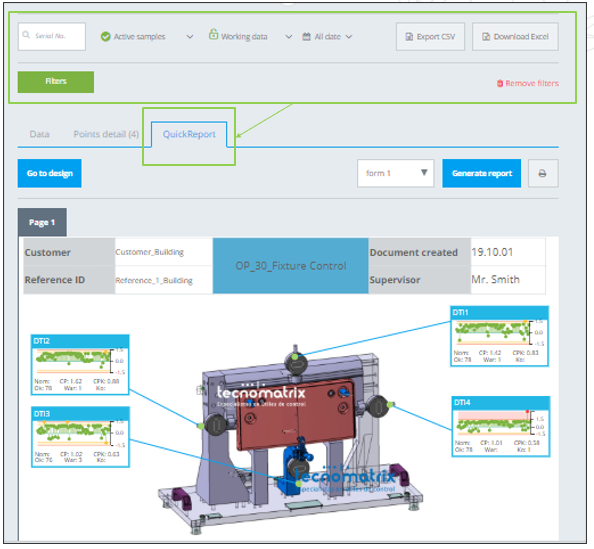

CONTROL GUIDES: QUICK REPORT.
We can also use filters on this area.
