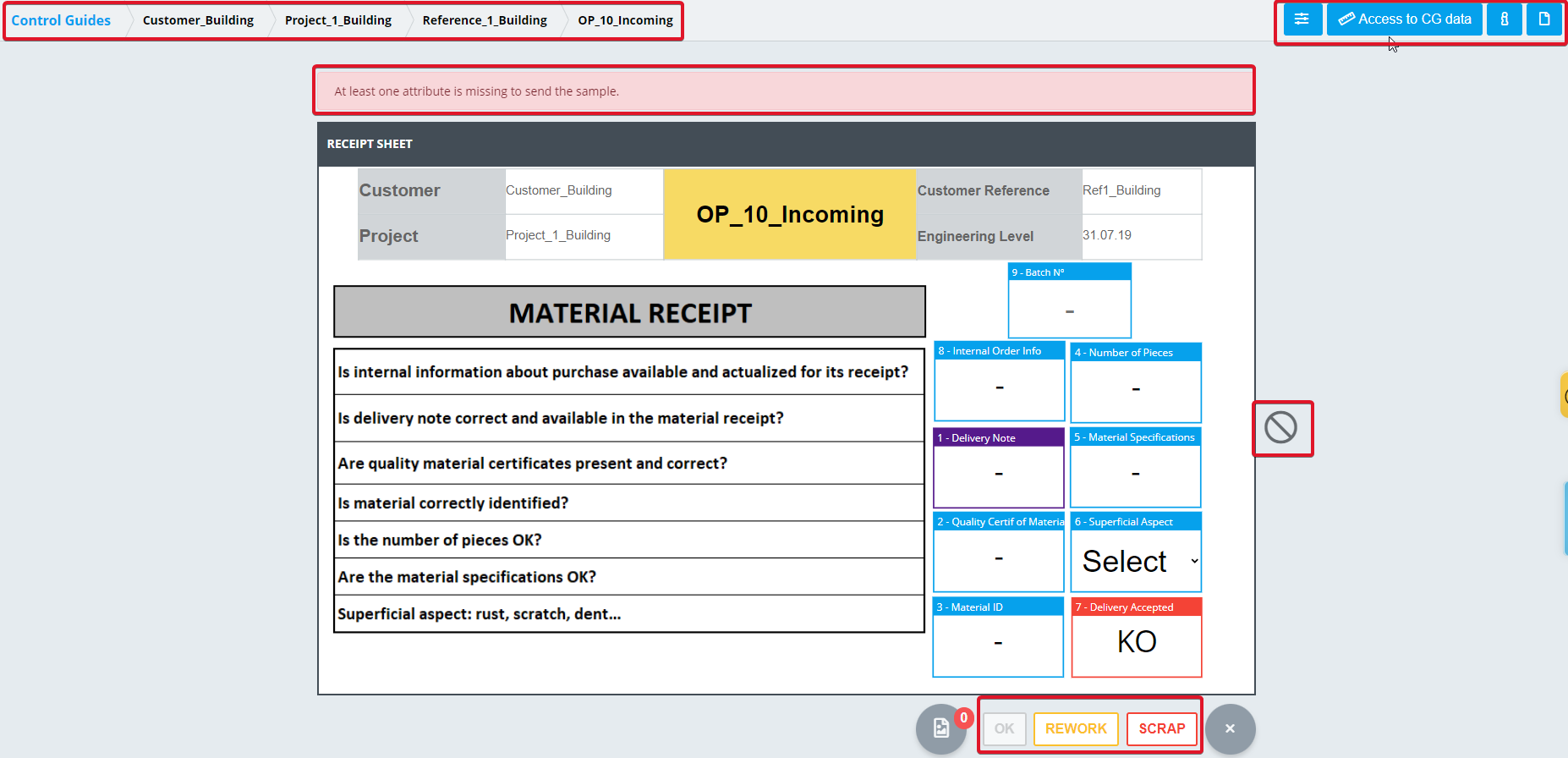

GENERAL INFORMATION:


  • BREADCRUMB: shows the control guide location.
  • "Missing several fields/at least one to send the sample":  informative message which notifies to the operator that there are attributes or measurements still pending.
  • NEXT PAGE: depending on the configuration of the Control Guide, this button will be blocked until the operator fills all the checks or attributes out.
  • Kapture.io Tags (OK, RWK, SCRAP): after measuring our control, we will select the final status of the control (can be mandatory).
  • Acces to CG Data and information and files button: acces to data and measurement directly from control, check sample details and check instructive files (if uploaded).

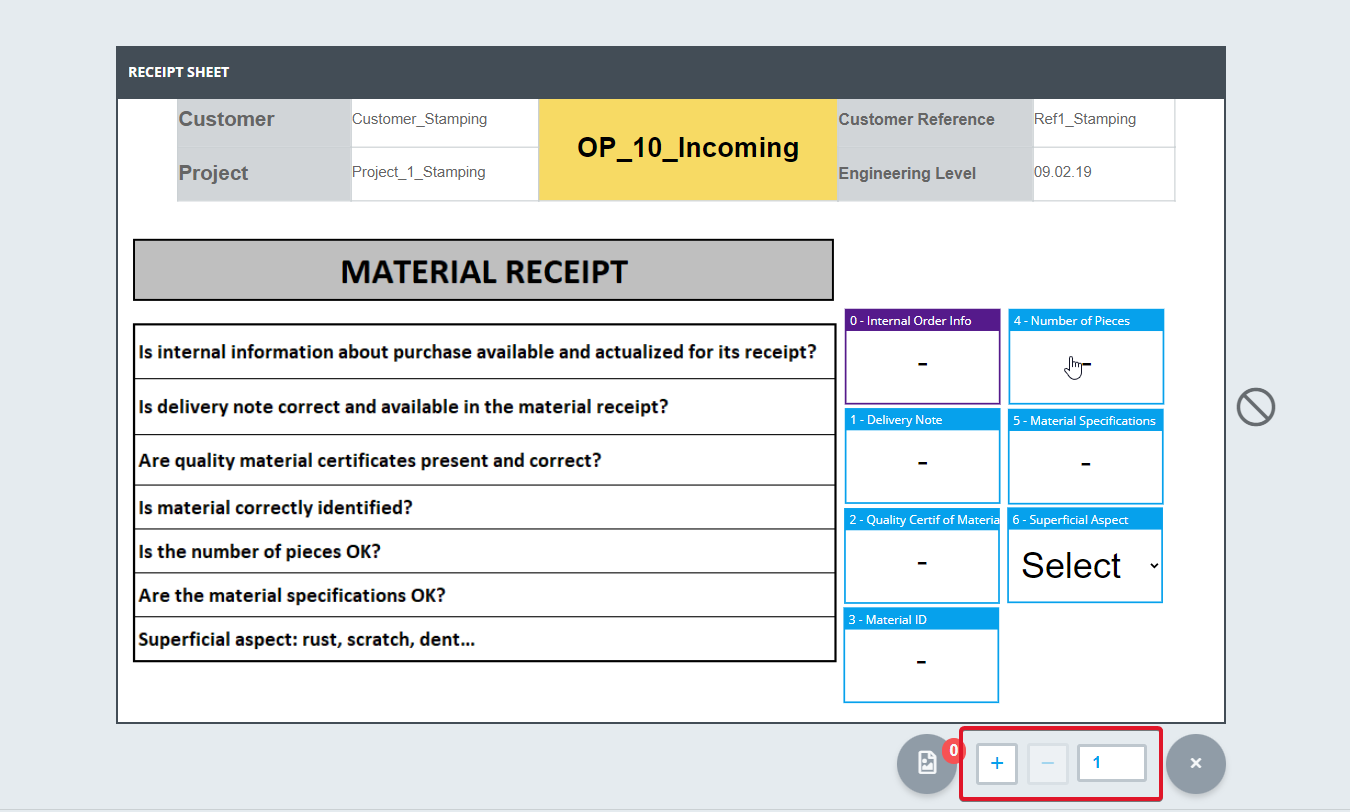

  • Multiple Sample Upload: depending on the configuration of the Control Guide, operators will be able to upload multiple measurements at once.
  • End of measurement button: upload our measurement to Kapture.io platform.
  • Uploaded sample message: message confirming the upload of a simple or multiples samples.


POSSIBLE TYPE OF CONTROLS ON OUR CONTROLS:

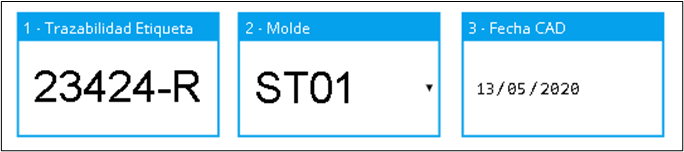

ATTRIBUTES:

  • Free Text: plain text can be entered including letters, numbers and symbols .
  • QR & Barcode reader: scan a code with a barcode reader or a device camera. On PC/Laptop, a free text attribute will appear instead.
  • List: select an option from a predefined drop-down list
  • Date: select a date on a calendar.
  • Number: only numbers can be allocated.
  • Note: attribute boxes will always appear on the controls in blue color.

CHECKS:

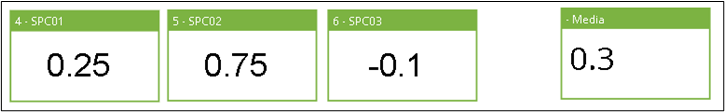

  • Numerical check:  numerical values with upper and lower tolerances. To write decimals we use coma.

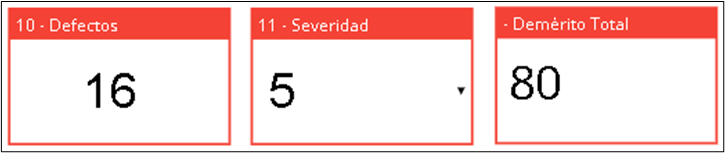

  • Computed check: automatic field. the result of an operation or a formula will be given.
  • Number with limits check: number between a maximum and a minimum predefined values.
  • Numerical checklist: select an option from a predefined numerical list.
  • Note: Depending on the defined nominal and tolerance values, once we fill the check, green, orange or red colour will reflect the quality status.

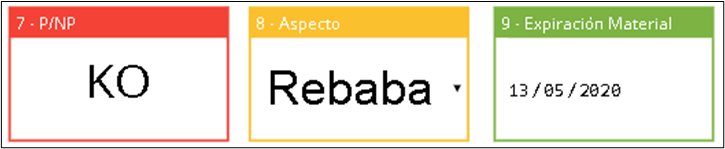

  • Boolean checks: select between OK or KO values.
  • List checks: select an option from a predefined text list.
  • Date checks: select the date on a calendar (inside or outside a range)
  • Note: We can have different quality status reflected on different colors (green, orange or red).


  • Note:: possibility of taking and uploading a picture or uploading a file depending on the check status previously selected in the check (can be required or not).

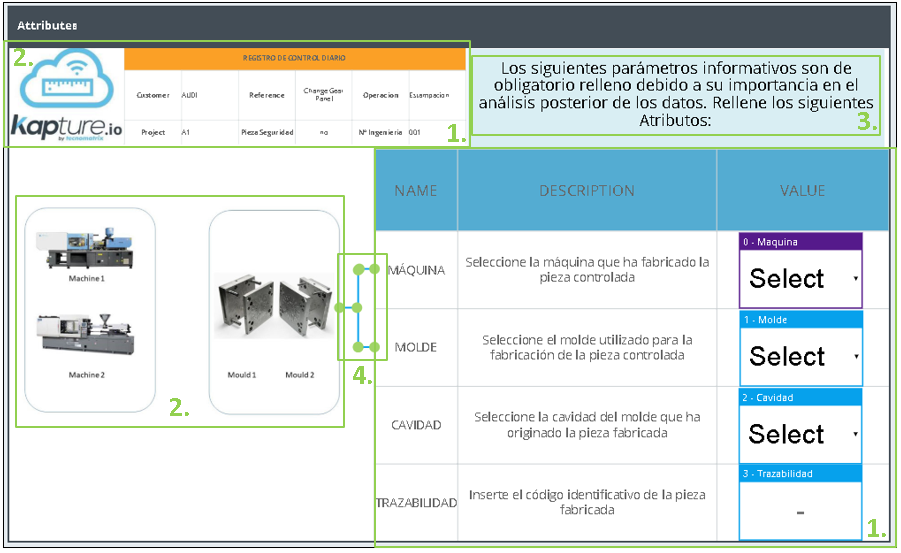

RESOURCES ON OUR CONTROLS


  1. Descriptive tables.
  2. Pictures to support the execution of controls.
  3. Informative text.
  4. Auxiliar lines.
